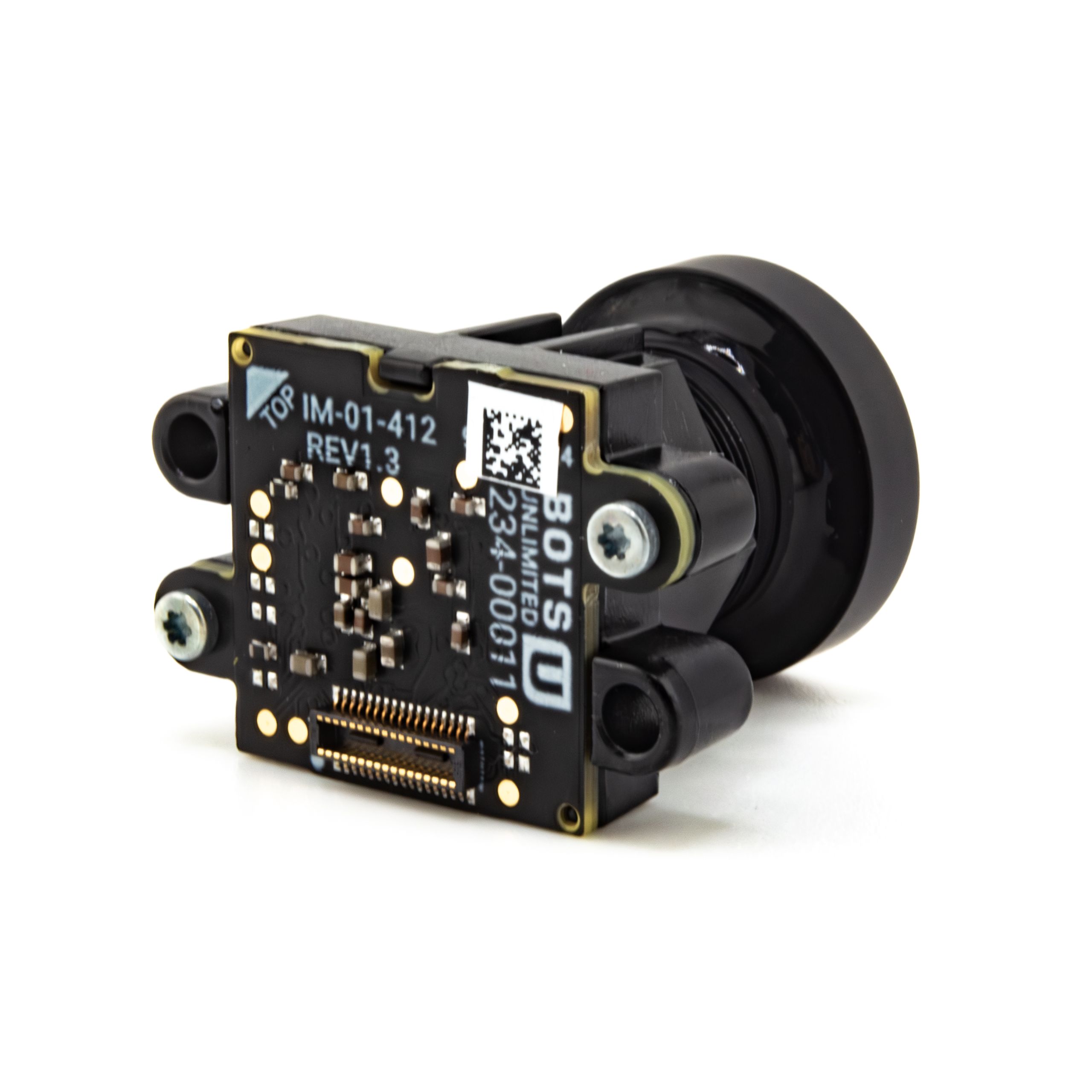

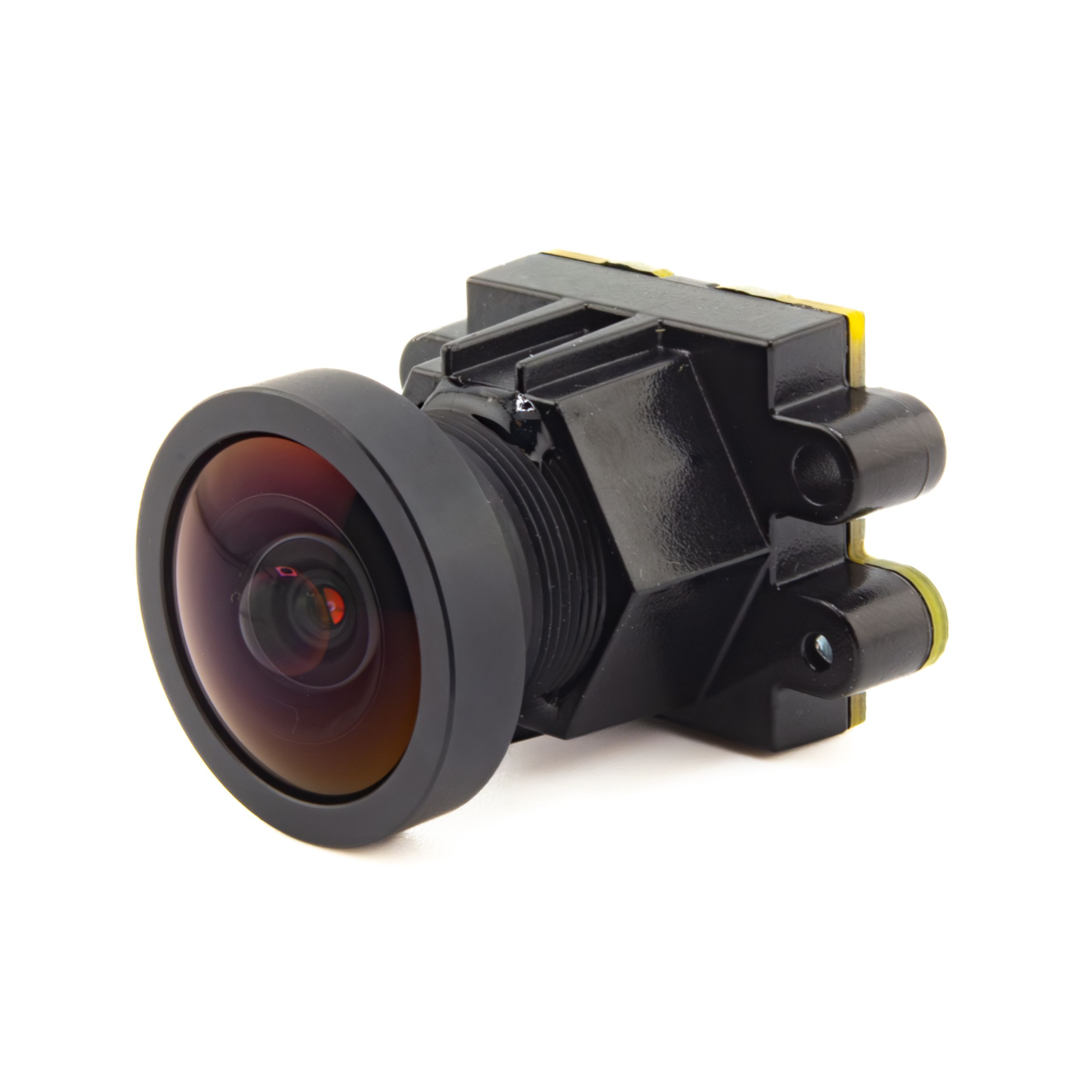

IM-01-412 High-Performance Camera Module

The IM-01-412 is a compact, production-ready camera module designed for high-quality imaging in embedded systems, robotics, and computer vision platforms. Built around the Sony STARVIS IMX412 12.3MP CMOS sensor, it captures detailed 4K video with excellent low-light sensitivity and a wide 152° field of view—ideal for applications requiring expansive scene coverage and reliable performance in space-constrained environments.

Featuring a four-lane MIPI CSI-2 interface, standard M12 lens mount, and integrated IR-cut filter, the module supports high-speed streaming at up to 59.9 FPS and integrates easily into custom systems. The IM-01-412 is fully NDAA-compliant and ready for deployment in production environments.

Key Features

• Sony STARVIS IMX412 Sensor – 12.3MP 1/2.3″ CMOS sensor with excellent low-light performance
• 4K Resolution (4056×3040) – High-detail capture with support for up to 59.9 FPS (4-lane MIPI)
• Wide 152° Field of View – Includes a 3.1mm lens with IR-cut filter and low distortion

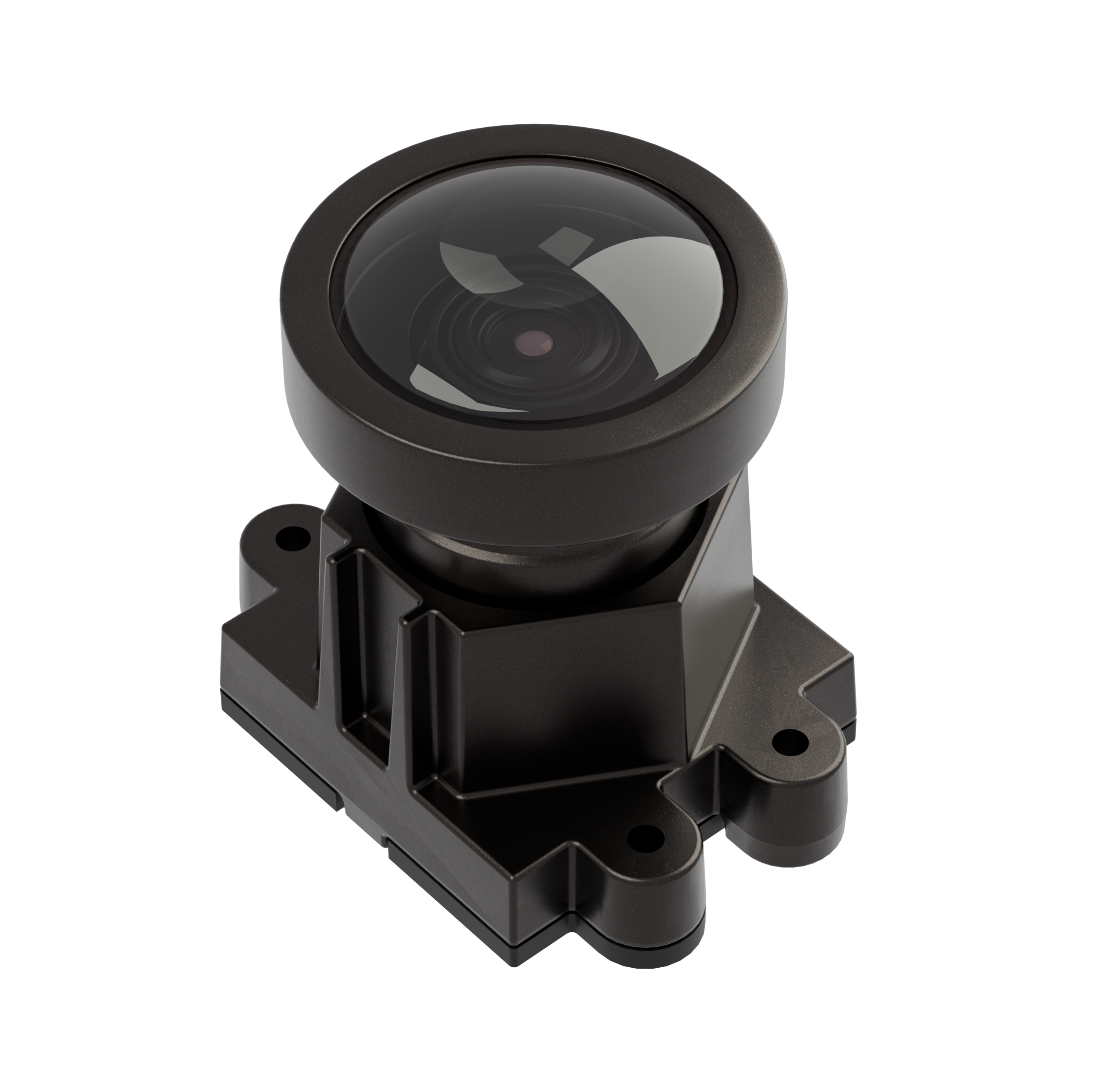

• Standard M12 Lens Mount – Allows easy lens swapping to suit specific field-of-view needs
• Compact Form Factor – 25.5 x 17 x 23.2 mm with integrated mounting for streamlined integration
• MIPI CSI-2 Output (2 or 4 Lane) – Supports high-speed image data transfer to embedded hosts
• Linux Driver Support – Compatible with V4L2, libargus, and Isaac ROS frameworks
• Cross-Platform Compatibility – Supports NVIDIA Jetson and Qualcomm robotics systems
• Industrial Temperature Range – Reliable performance from -20°C to +75°C
• NDAA-Compliant – Manufactured outside of China for compliance with regulated supply chain requirements
