Description

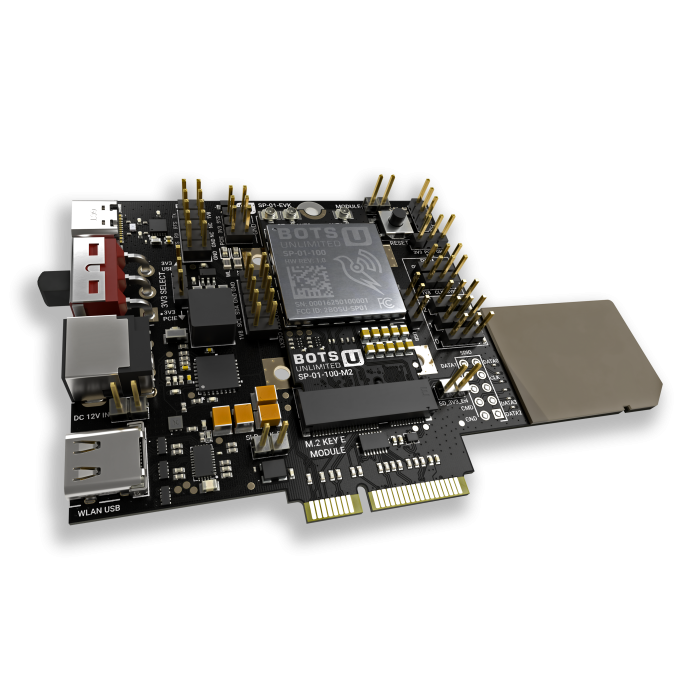

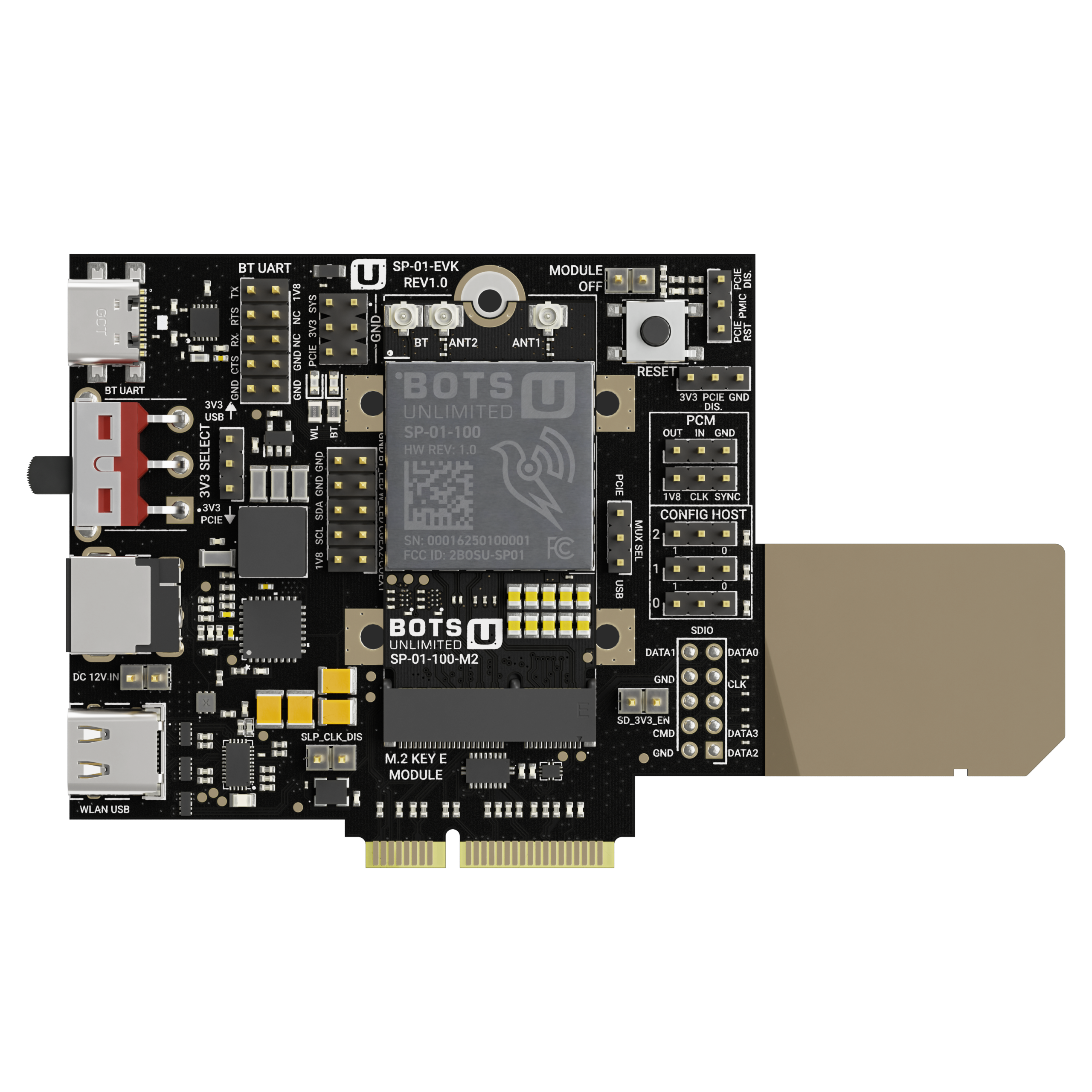

SP-01-EVK Sparrow Long Range Wi-Fi Module Evaluation Kit

The SP-01-EVK is a comprehensive evaluation platform designed to accelerate development and testing with the SP-01-100-M2 Long Range Wi-Fi Module. Built for engineers and system integrators, this board features full breakout access to key interfaces—including USB, PCIe, SDIO, and Bluetooth UART—enabling seamless integration and performance validation in a variety of host environments.

With a mini PCIe edge connector, built-in FTDI USB-to-UART bridge, and selectable 3.3V power input, the SP-01-EVK is an ideal tool for prototyping, firmware development, and RF performance testing. Each kit includes a pre-installed SP-01-100-M2 module, two high-performance flex antennas, a 12V/2A DC power adapter, and a USB-C cable—everything needed to get started immediately.

Key Features

• Includes SP-01-100-M2 Wi-Fi Module – Long-range, NDAA-compliant wireless performance
• Complete Interface Access – Breakouts for USB, PCIe, SDIO, and Bluetooth UART via onboard FTDI USB
• Mini PCIe Edge Connector – Compatible with legacy systems or carrier boards
• Dual Antenna Support – Comes with 2x flexible high-gain antennas for MIMO configuration
• Included Accessories – 12V/2A DC power adapter and USB-C cable included for rapid setup
• Configurable Power Input – 3.3V source selectable via jumper for USB or PCIe modes
• Onboard Debug Access – Reset button, config headers, and SLP_CLK control for testing and development
• Ideal for Prototyping and Certification Prep – Enables rapid validation of Wi-Fi module performance across different bus interfaces
