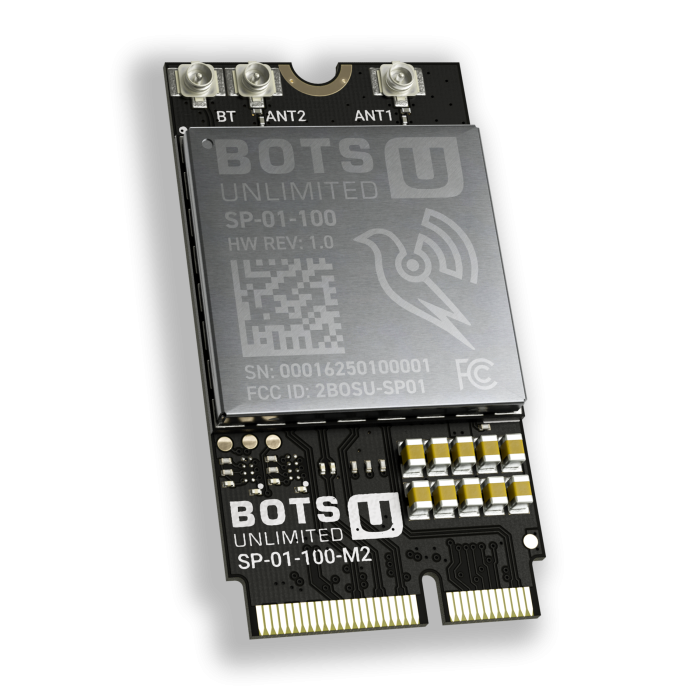

Sparrow M.2 Long Range Wi-Fi Module

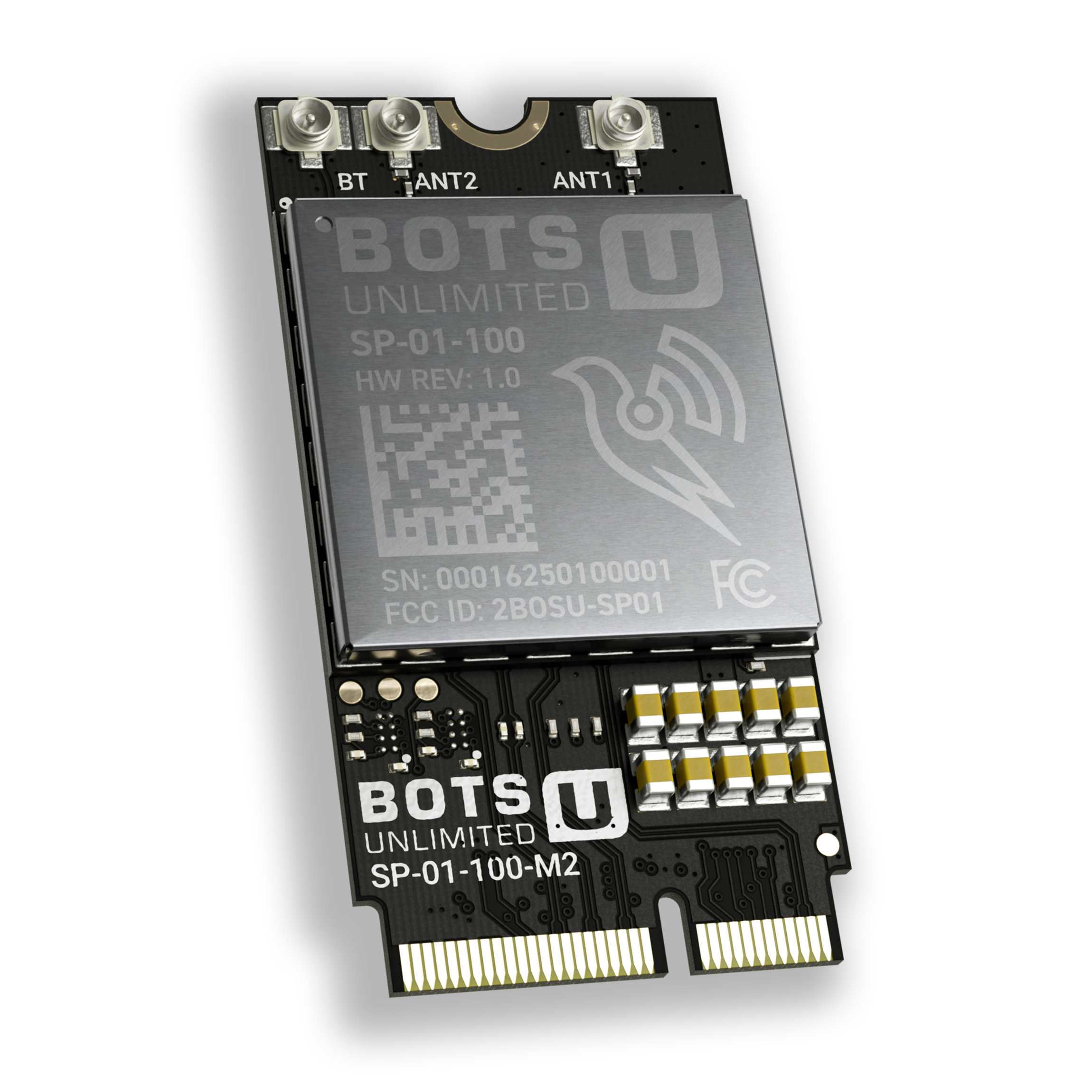

Sparrow M.2 Long Range Wi-Fi Module - Image 2

Sparrow M.2 Long Range Wi-Fi Module

The SP-01-100-M2 is a high-power M.2 Key E Wi-Fi module offering dual-band 802.11ac and Bluetooth 5.1 in a compact, NDAA-compliant form factor. With up to 30 dBm output and flexible host interfaces, it’s purpose-built for long-range wireless embedded applications.

Share

Description

SP-01-100-M2 Sparrow Long Range Wi-Fi Module (M.2 Form Factor)

The SP-01-100-M2 is a compact M.2 Key E wireless module delivering high-power, long-range dual-band Wi-Fi (802.11ac) and Bluetooth 5.1 connectivity. Supporting PCIe, USB, and SDIO interfaces, it’s ideal for embedded systems, drones, robotics, and edge computing devices requiring high-throughput and robust RF performance in a small footprint.

With integrated power and low-noise amplifiers and support for up to 30 dBm of conducted output power, the SP-01-100-M2 is NDAA-compliant and includes a hardware RF kill switch for FAA-compliant use.

Key Features

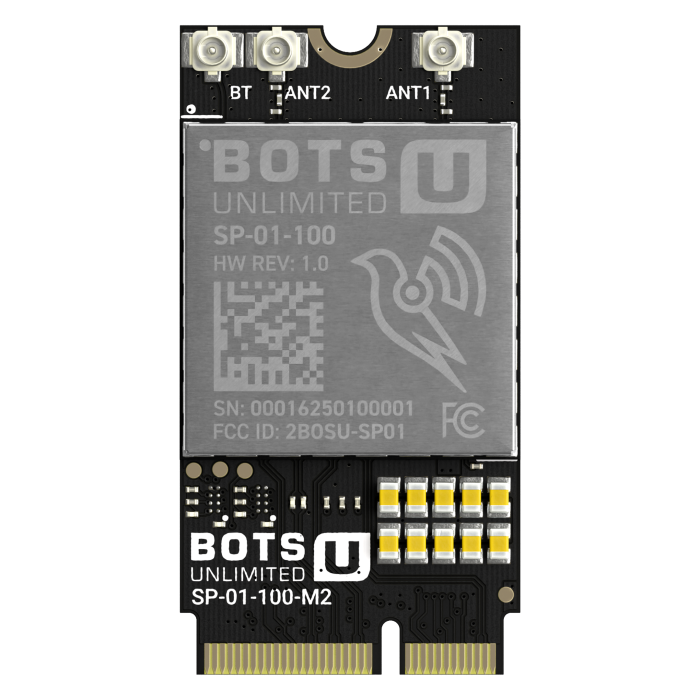

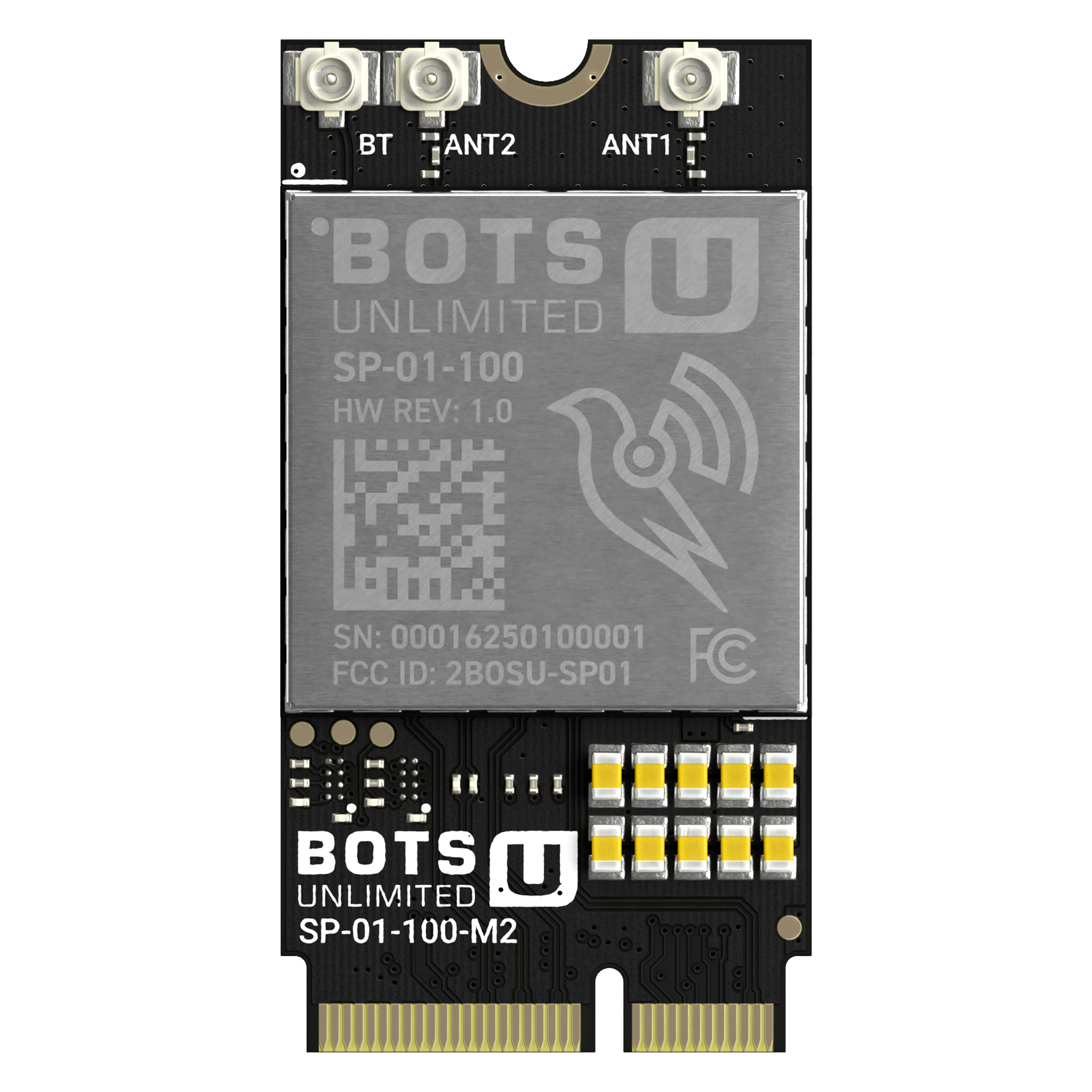

  • M.2 2242 Key E Form Factor – Compact 22x42mm module with U.FL antenna connectors
  • Dual-Band 802.11ac Wi-Fi (2.4 & 5GHz) – Up to 866 Mbps with 2×2 MIMO support
  • Integrated Bluetooth 5.1 – USB, UART, or SDIO interface options for BT control
  • High Power Output – Up to 30 dBm
  • Hardware RF Kill Switch – FAA-compliant shutoff for regulated deployments
  • Multiple Host Interfaces – PCIe, USB, and SDIO interface options for maximum flexibility
  • Built for Harsh Environments – Operating range: -40°C to +85°C
  • Linux Driver Support – Supports raw 802.11 mode (OpenHD, FPV streaming, custom stacks)
  • NDAA-Compliant
  • FCC and Wi-Fi CERTIFIED® – Pending
